Well Pump Electrical for Orange County, New York Homes
In a house on a well, no power means no water. When the taps go dry, the cause is often electrical: a pressure switch with burned contacts, a failed capacitor in the control box or a tripped pump circuit. We find which, and make sure the pump keeps running through the next outage.
- Calls answered 24/7
- Pressure switches and control boxes
- Generator plans for the pump
- Pump circuit and switch tested
- Control box checked
- Generator connection planned
Well pump electrical work covers the pump circuit, the pressure switch on the tank, the control box for many submersible pumps, and the plan for running the pump on generator power. We diagnose whether a dry tap is electrical or mechanical before anything is replaced. National 2026 cost data puts a full well pump replacement at about $900 to $2,500 on average.
Rather ask a person?(929) 755-0293What well pump electrical work involves
A well pump system is simple on paper: a pump in the well or a jet pump in the basement, a pressure tank, and a pressure switch that turns the pump on and off as the pressure drops and recovers. Many deep submersible pumps also have a control box with a start capacitor and relay. Each of those is electrical, and each fails in a recognizable way.
Before anyone pulls a pump out of the well, which is the expensive part, we test the circuit, the pressure switch contacts, the control box and the voltage at the pump leads. A burned switch or a failed capacitor is a short repair. If the motor itself has failed, we tell you so and coordinate with the well contractor; if the house loses power often, we plan the pump onto a generator interlock or standby unit.
Updated September 2026
What sets the cost of well pump electrical work
Diagnosis first; the answer decides the bill.
- Switch or control boxComponent repairs are the smallest jobs.
- Circuit problemsUndersized or shared circuits need a new run.
- Motor failurePulling the pump is well-contractor work.
- Generator planInterlocks and transfer switches add cost.
- AccessCrawlspaces and well pits slow the work.
Well troubleshooting yourself versus calling us
| Task | Doing it yourself | With us |
|---|---|---|
| Resetting the breaker | Fine once, if it holds | Repeated trips traced to the cause |
| Tapping the pressure switch | Sometimes restarts a worn switch | Switch replaced and pressures set |
| Checking tank pressure | Easy with a tire gauge | Tank and switch matched |
| Opening the control box | Live parts and stored charge | Capacitor and relay tested safely |
| Generator hookup | Backfeeding is dangerous | Interlock or transfer switch installed |
A reset is reasonable once; anything inside the switch or box is ours to open.
Three electrical problems in well systems
Well Pump Circuit and Pressure Switch

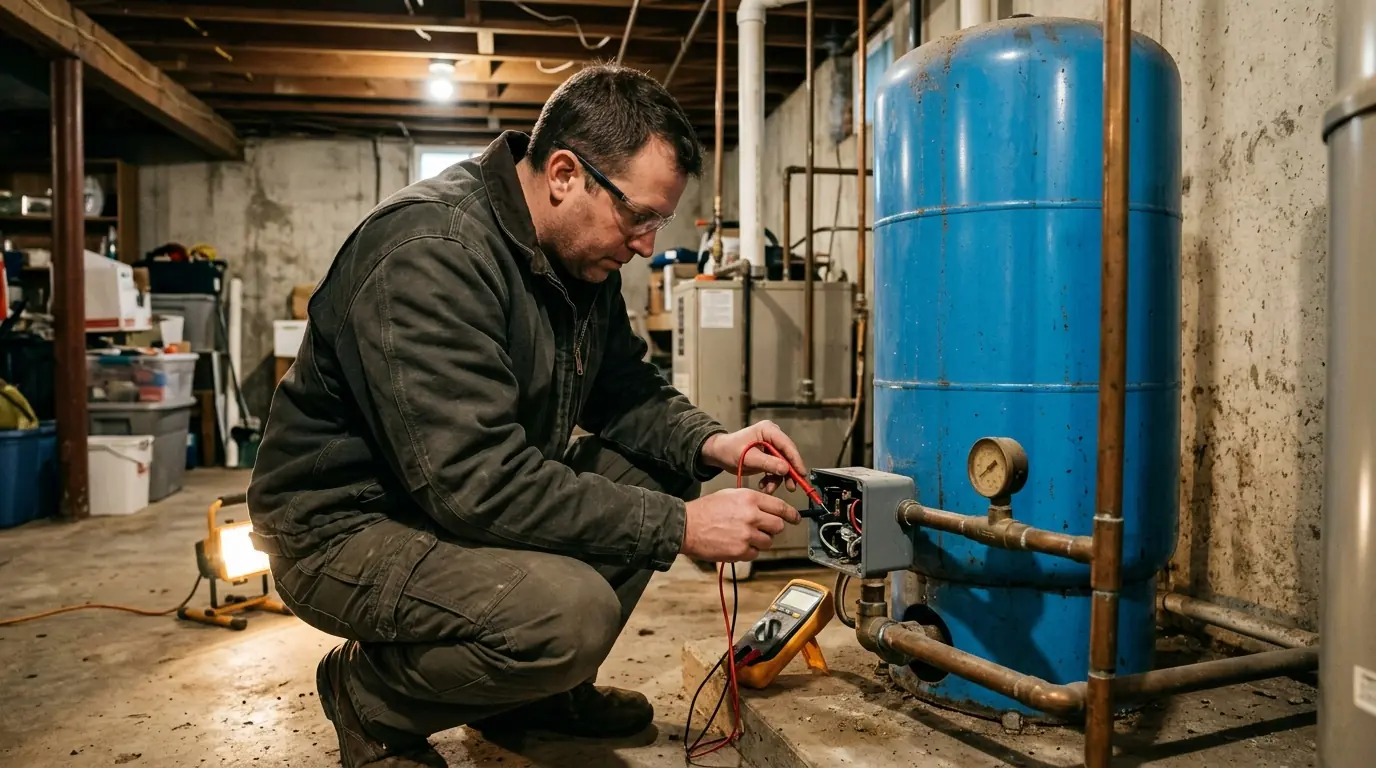

The pressure switch is the part that fails most often. Its contacts open and close thousands of times, and over the years they pit and burn until the pump will not start or will not stop. We test the switch, the tubing that feeds it and the circuit behind it, then replace the switch and set the cut-in and cut-out pressures to match the tank. Where the pump shares a circuit or the breaker is undersized, we correct that at the same visit.
Planning range (national sources, 2026): $900 to $2,500 on average for a well pump replacement. Coastal-market pricing and building access change the figure; this is a planning band, never a quote.
Well Pump Control Boxes and Starting Problems
Many submersible pumps rely on a control box with a start capacitor and relay. When the capacitor fails, the pump hums or trips the breaker instead of starting, and the house loses water. We test the box, replace failed components and check the voltage and amperage at the pump leads, which tells us whether the motor is healthy or the problem is down the well. That test is what separates a short electrical repair from pulling the pump, which costs far more and is the well contractor's job.
Well Pumps on Generator Power
A well pump draws a large surge for a moment every time it starts, so the generator has to be sized for that starting load, not just the running amps on the label. We put the pump on its own breaker inside an interlock or transfer switch plan, often alongside the boiler and refrigerator, so a portable generator or standby unit can keep water flowing through a long outage. It is the first circuit most well owners ask about after a storm, and the one that matters most when the outage runs for days.
Wells, outages and Orange County
Orange and Rockland serves Warwick and most of the towns around it, and Orange County's electric customers are split among several utilities. For houses on private wells, every outage on those lines is also a water outage, which is why a well pump plan is part of almost every generator job we do in Orange County, alongside the boiler and the refrigerator.
How well pump electrical work runs
Ask about symptoms
No water, humming, tripping or cycling.
Test the circuit
Breaker, wiring and voltage checked.
Test the controls
Pressure switch and control box.
Repair or advise
Fix the part or call in the well contractor.
Confirm
Pump cycles normally at the right pressures.
Signs the well pump has an electrical problem
- No water and a tripped breaker
Often a failed start capacitor or a short.
- Pump hums but does not start
Typical of a bad control box component.
- Clicking at the pressure switch
Worn contacts or a clogged pressure tube.
- Pump short-cycles on and off
Switch settings or tank pressure are off.
- Lights dim when the pump starts
Starting load on a weak circuit.
- Pump never shuts off
Contacts welded closed; shut it off and call.
Well pump electrical questions
Often a failed start capacitor, a shorted cable or a failing motor; testing tells which.
Usually a control box capacitor or relay, sometimes a stuck motor.
They wear with use; burned contacts are a common cause of no water.
One sized for the pump's starting surge, not only its running amps.
That is well-contractor work; we test first so it only happens when needed.
Yes, sized to the pump and not shared with other loads.
Yes, wired into the transfer plan with its own breaker.
