Heat Pump and Mini-Split Electrical Hookups in New York
A heat pump is only as good as the circuit behind it. We confirm the panel can carry the new load, run the circuit, install the outdoor disconnect and have it ready for the HVAC installer.
- Calls answered 24/7
- Load check first
- Ready for the HVAC crew
- Load calculation on the existing panel
- Circuit and outdoor disconnect installed
- Coordinated with your HVAC installer
Heat pump and mini-split electrical work in New York is the circuit, breaker and outdoor disconnect that feed the condenser, sized to the unit's minimum circuit ampacity, typically a 240 volt line between 15 and 50 amps. A load check comes first, because electric heating can push an older 100 amp service past its limit in winter.
Rather ask a person?(929) 755-0293What the electrical side of a heat pump involves
The HVAC installer mounts the equipment and runs the refrigerant lines. We handle the power: a dedicated 240 volt circuit from the panel, a disconnect within sight of the outdoor unit, the whip to the condenser, and any control wiring the system needs.
The important step is the one before the wire. Replacing a boiler or furnace with heat pumps moves the whole heating load onto the electrical service. On a 100 amp panel that already carries a range and a dryer, that can be too much, and it is better to know before the equipment is ordered. Where the service is short, a service upgrade or load management is planned in.
Updated September 2026
What moves the cost of heat pump wiring
Panel capacity decides more than the wire run does.
- Existing capacityRoom on the service keeps it simple; a shortfall means an upgrade.
- Number of zonesEach outdoor unit needs its own circuit and disconnect.
- Backup heat stripsAir handlers with strips need a large second circuit.
- Distance and routeRoofs, fire escapes and long runs add time.
- Building approvalsCo-ops often control rooftop and facade work.
Upgrade the service or manage the load
| Factor | Service upgrade | Load management |
|---|---|---|
| What it does | Adds capacity at the meter and panel | Keeps large loads from peaking together |
| Best for | Full electrification, 60 or 100 amp services | One or two new loads with some headroom |
| Utility involvement | Yes, a service request | Usually none |
| Future loads | Plenty of room | Limited |
If the plan is heat pumps, induction and an EV over the next few years, the upgrade usually wins. For a single mini-split, load management or a spare circuit is often enough.
Three heat pump electrical jobs

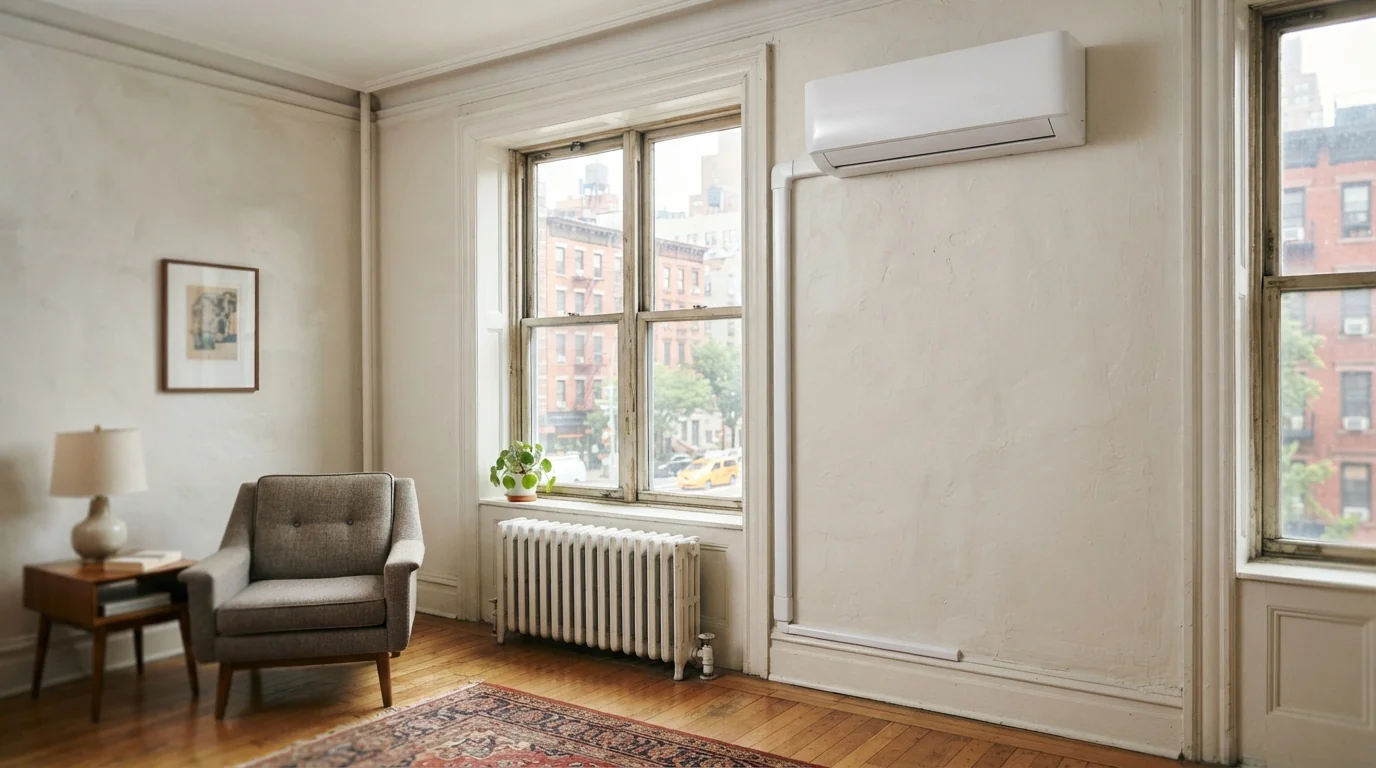

Mini-Split Disconnect and Circuit

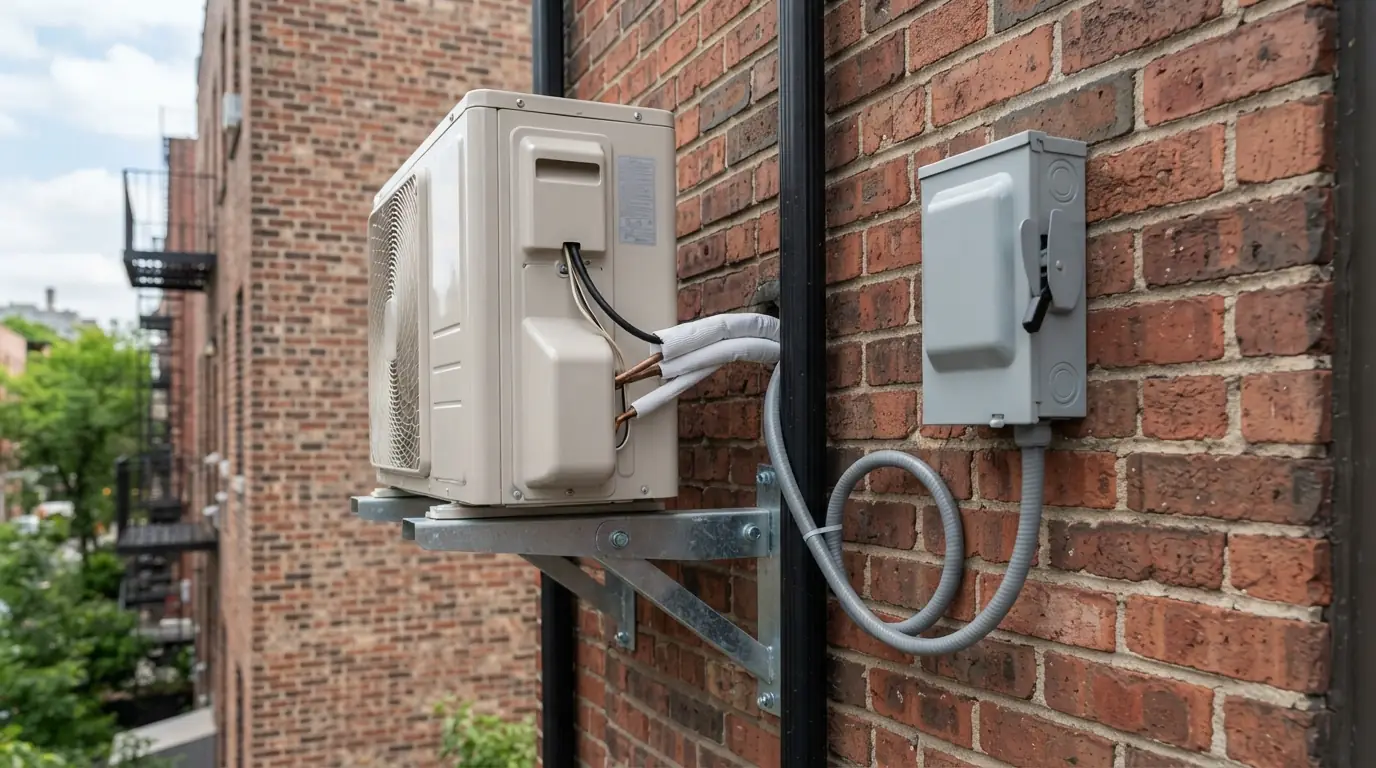

A single-zone or multi-zone mini-split needs its own 240 volt circuit sized to the outdoor unit's minimum circuit ampacity, and a disconnect mounted within sight of that unit. We run the circuit, set a weather-rated disconnect, and connect the whip. For units on a city roof or a fire escape bracket, we route the circuit the way the building permits and keep the disconnect reachable for service technicians, who will need to shut the unit off safely for every maintenance visit.
Whole-Home Heat Pump Electrical
Ducted heat pumps that replace a furnace often come with electric backup heat strips, and those strips can draw more than the compressor. The panel may need two circuits: one for the outdoor unit and one for the air handler with its heat strips. We size both from the equipment data, confirm the service can carry them together on the coldest night, and install them ready for the HVAC crew to connect, labeled so a future technician knows which breaker feeds which part of the system.

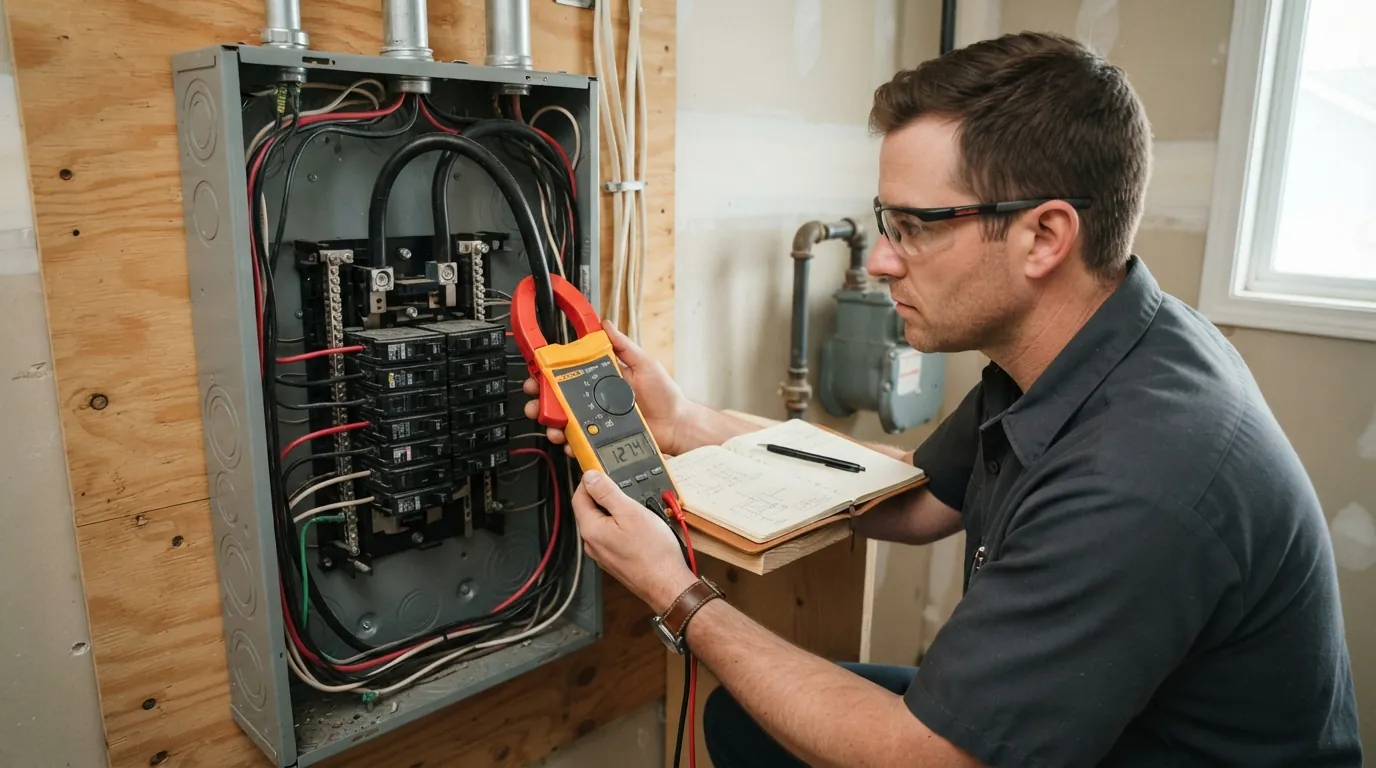

Electrification Load Check
Before a heat pump, an induction range or an EV charger is bought, a load calculation tells you whether the existing service can carry them. We total the existing and planned loads the way the code requires and give you a plain answer: fine as is, fine with load management, or needs more capacity. It is a small step that prevents ordering equipment the house cannot power, and the written result is useful to the HVAC contractor and to any utility service request.
Planning range (national sources, 2026): $1,500 to $4,000. Coastal-market pricing and building access change the figure; this is a planning band, never a quote.
What our part of the install includes
- Load calculation on the existing service
- Circuit sized to the unit's minimum circuit ampacity
- Breaker matched to the maximum overcurrent rating
- Weather-rated disconnect within sight of the unit
- Whip and connection at the condenser
- Control wiring where the system needs it
- Permit, inspection and panel labeling
Old services and new heat pumps
A single Level 2 charger can draw 24 to 48 amps continuously, and a heat pump with backup strips can draw similar amounts on a cold night; on a 100 amp service, both together leave very little room. Around Warwick and the rest of Orange County, houses built before 1960 sometimes still run on 60 amp service, and those need a service upgrade before any electric heating goes in. The load check tells you which case you are in.
How heat pump electrical runs
Load check
Existing and planned loads totaled against the service.
Coordinate with HVAC
Unit locations and equipment data confirmed.
File the work
Circuit and any service change filed.
Install
Circuits, disconnects and whips ready for connection.
Inspect and label
Inspection passed, directory updated.
Heat pump electrical questions
Yes, each outdoor unit gets a dedicated circuit and disconnect.
Sometimes; the load check answers it before equipment is bought.
We do the electrical; a licensed HVAC installer sets the equipment.
The rating on the unit's plate that sets the wire size.
Yes, new circuits and service changes are filed and inspected.
It must be within sight of the outdoor unit.
Yes, with the building's approval and access.
