Heat Pump Water Heater Wiring in New York

240-Volt Heat Pump Water Heater Circuit

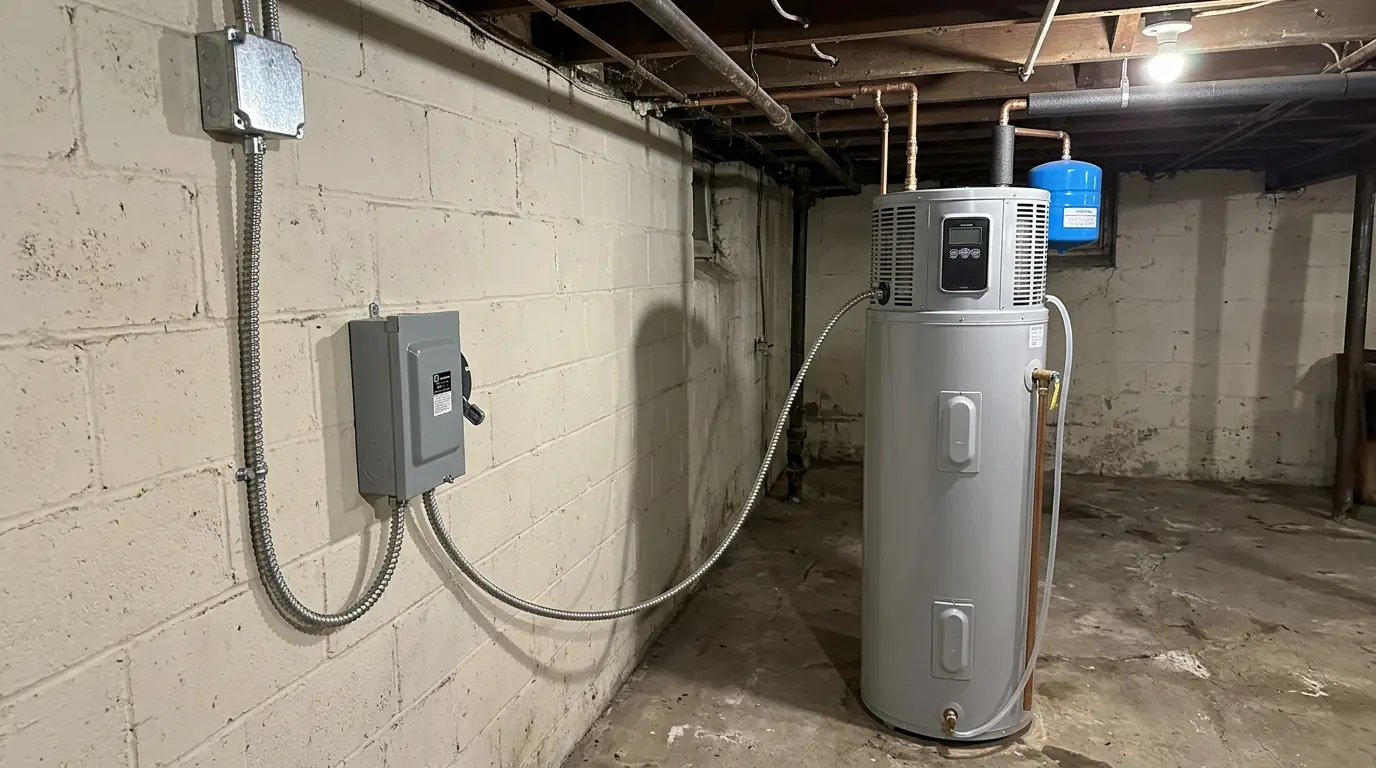

The standard route is a dedicated 240-volt circuit, usually 30 amps, from the panel to the tank location, ending in a disconnect or junction box the plumber can connect to. We size the breaker and conductors to the nameplate, label the circuit in the panel, and leave the connection ready before the tank arrives. This is the right choice when the panel has room and the household uses a lot of hot water, because the backup elements recover quickly on busy mornings.

Planning range (national sources, 2026): $2,000 to $5,500 installed for a heat pump water heater, with the electrical share $200 to $1,500. Coastal-market pricing and building access change the figure; this is a planning band, never a quote.

120-Volt Plug-In Heat Pump Water Heaters

Plug-in models run from a standard dedicated outlet and skip the two-pole breaker entirely, which matters in apartments and older houses with full panels. They recover more slowly because they lack large backup elements, so they suit smaller households or a larger tank. We install the outlet, confirm the circuit is not shared with anything that would trip it, and add a separate outlet for a condensate pump if the tank cannot drain by gravity. The panel then keeps its last open space for something else.

Replacing an Old Electric Tank

Swapping an old electric resistance tank for a heat pump model is often the simplest electrical job of the three, because a 240-volt circuit is already there. We still check it: the wire size, the breaker, the condition of the connection at the old tank, and whether the new model's nameplate matches. Older circuits sometimes need a new disconnect or a short section of new cable where the old one was damaged by heat or water. We also confirm the breaker matches the new nameplate, because a heat pump model can call for a different size than the tank it replaces.
